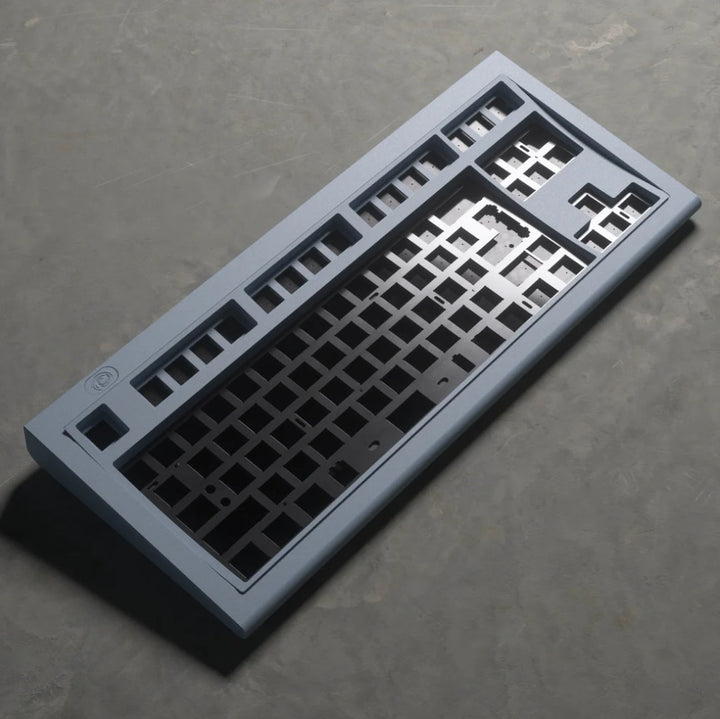

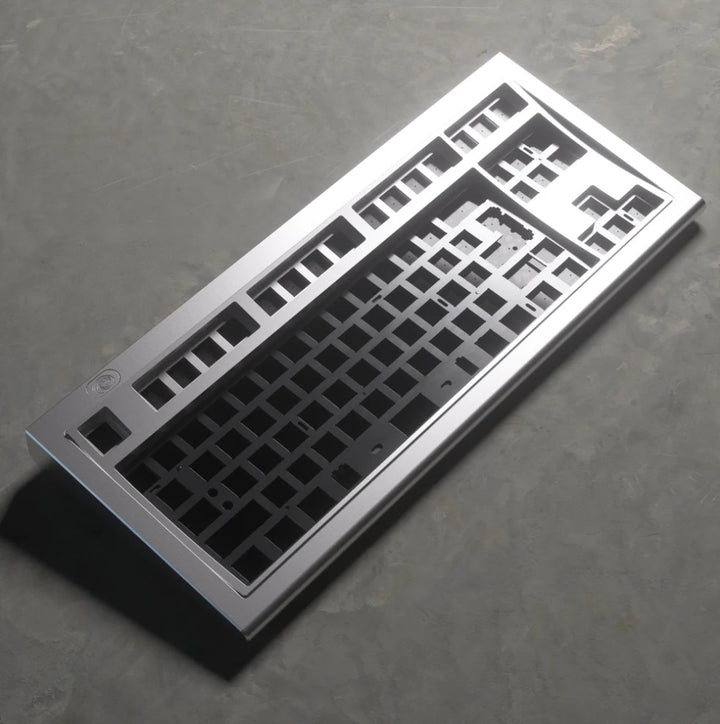

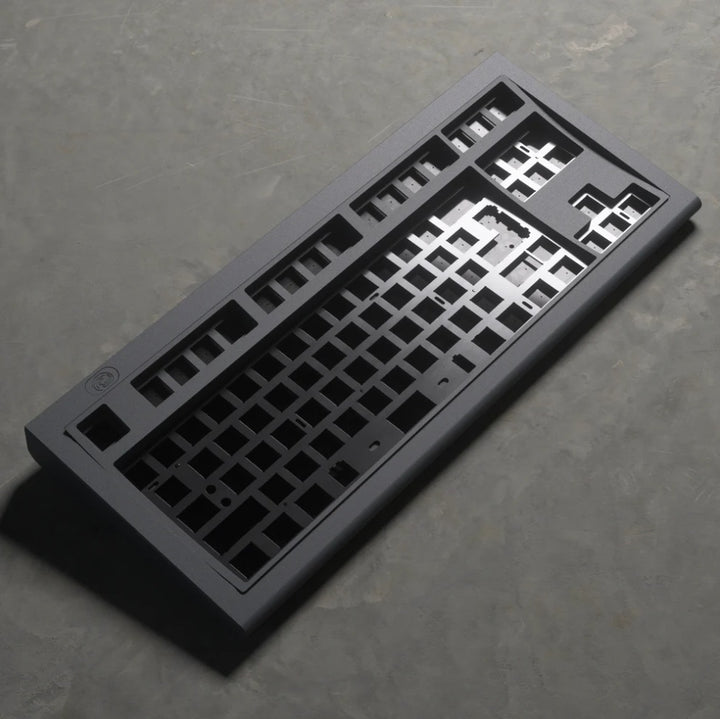

Vortex Model M SSK WK 7u Aluminum Barebones TKL Hotswap RGB DIY Keyboard Kit

Wired with USB-C connectivity
TKL Windows key-less layout with 7u spacebar
Gasket mount structure with 6 degree typing angle
Compatible with MX switches and clones (3-pin & 5-pin)
South-facing switches and RGB LEDs
Fully customizable RGB using VIA / Vial
1.6 mm thickness PCB with FR4 plate
Aluminum Vortex logo badge
Programmable via QMK/VIA/Vial
DIY kit – assembly is required
**Barebones item!** Does Not Include Switches, Keycaps, Stabilizers, or Cable
Kit Includes:
Aluminum Vortex logo badge
Additional “VTK” badge is only included in initial preorders placed before December 25th, 2022
Top and bottom case x1
FR-4 mounting plate x1
Hotswap 7u spacebar PCB x1
USB daughter board x1
Plate foam: 3mm x2 (Main PCB And F-row)
Poron switch pad: 0.3mm x2 (Main PCB And F-row)
Bottom case sound-dampening foam: 3mm x1 (Main PCB)
Gasket set x1
Screw set x1
Rubber feet set x1 set
Carrying case x1
*Switches, keycaps, stabilizers, and cable are not included*
