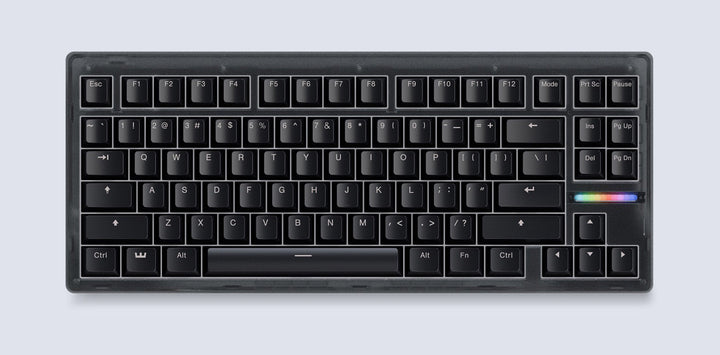

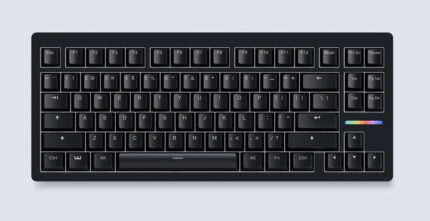

Wooting 80HE Magnetic 75% Hotswap RGB Keyboard

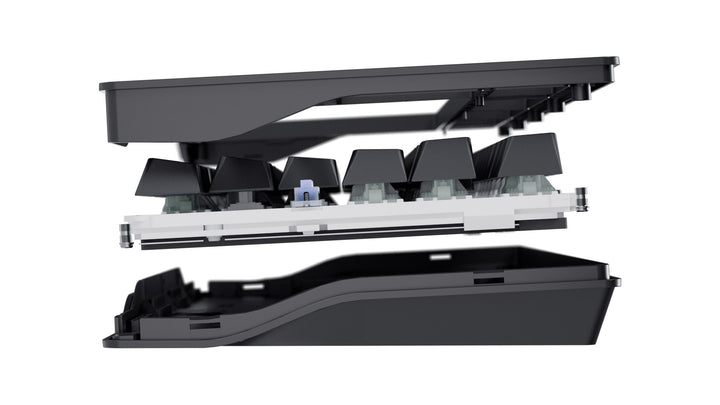

Gasket mount design with polycarbonate plate
Lekker V2 L60 magnetic Hall effect switches
Adjustable actuation point from 0.1mm – 4.0mm
Rapid Trigger allows a switch to reset without surpassing a fixed reset point
Rappy Snappy monitors at least 2 selected keys and activates the key pressed the furthest
8K polling rate with 0.125ms latency
LED bar can be used for indicator lights or ambient effect (can be turned off using Wootility app)
PCB mount screw-in stabilizers

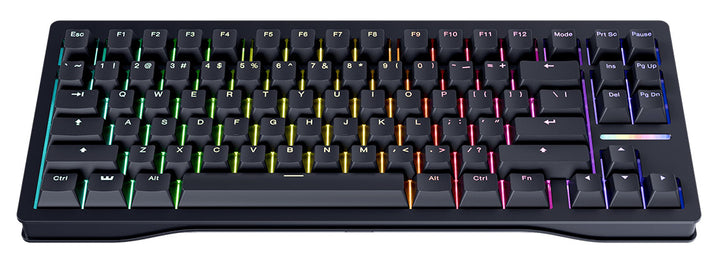

North facing per-key RGB with 4 LEDs under the spacebar
Sound absorbing layers include EPDM foam, PET film “tape mod”, and silicone sandwich pad

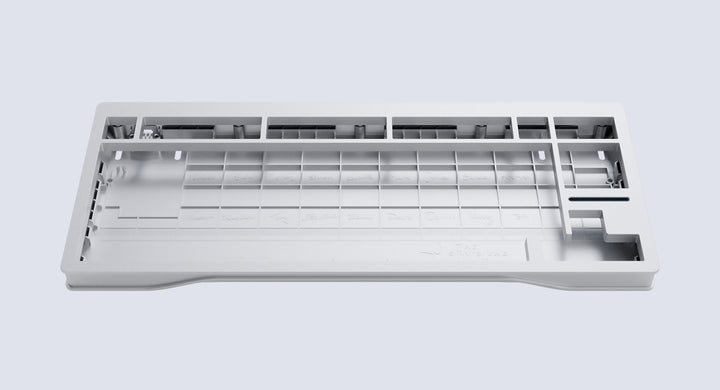

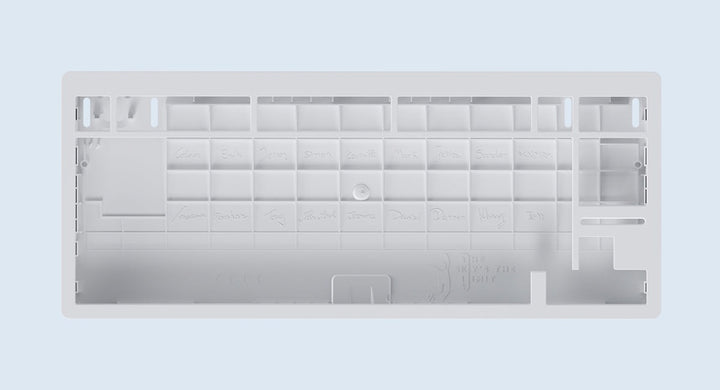

ABS frame is made of 65% Post Consumer Recycled plastic
Compatible with Gateron KS-20, Gateron Magnetic Jade, or Lekker switches
OEM profile Double Shot PBT backlit keycaps
Use Wootility to program RGB, actuation point, and profiles and save changes to the board itself

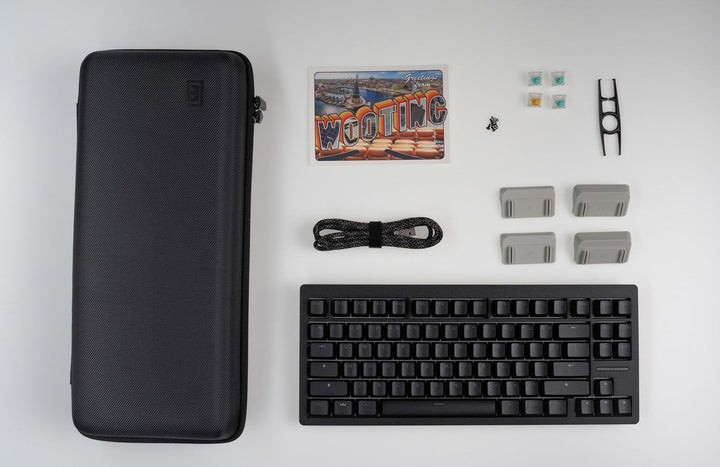

Includes:
– switch and keycap puller
– 3 spare Lekker L60 V2 switches
– braided nylon USB-C to USB-C cable
– USB-C to USB-A dongle

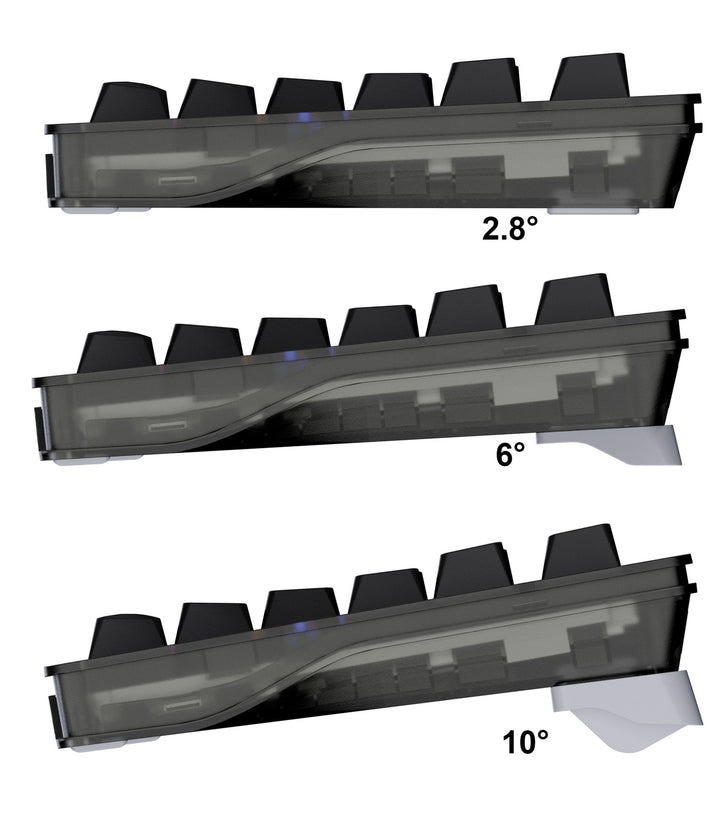

– 2* 6° feet
– 2* 10° feet
– 4* M2x5 spare screws
– 7* additional keycaps (Home, End, Scroll Lock, A1, A2, A3, Wooting logo key)
Keyboards with zinc alloy frames also include a carrying case.
The Wooting 80HE keyboard uses Lekker L60 V2 switches with rapid trigger capability. These switches use magnets and sensors instead of physical contacts to process actuations, creating a much smoother keypress without bounce or chatter. The adjustable actuation point is determined not by location but by distance travelled
Lekker L60 V2 switch
– 40g start force
– 60g bottom out force
– linear
– adjustable actuation point from 0.1-4.0mm
– silent
– MX stem
– 100 million keypress lifetime
